Training Model / Assembly & Care
From the box to the table.
Your model. Your pace.

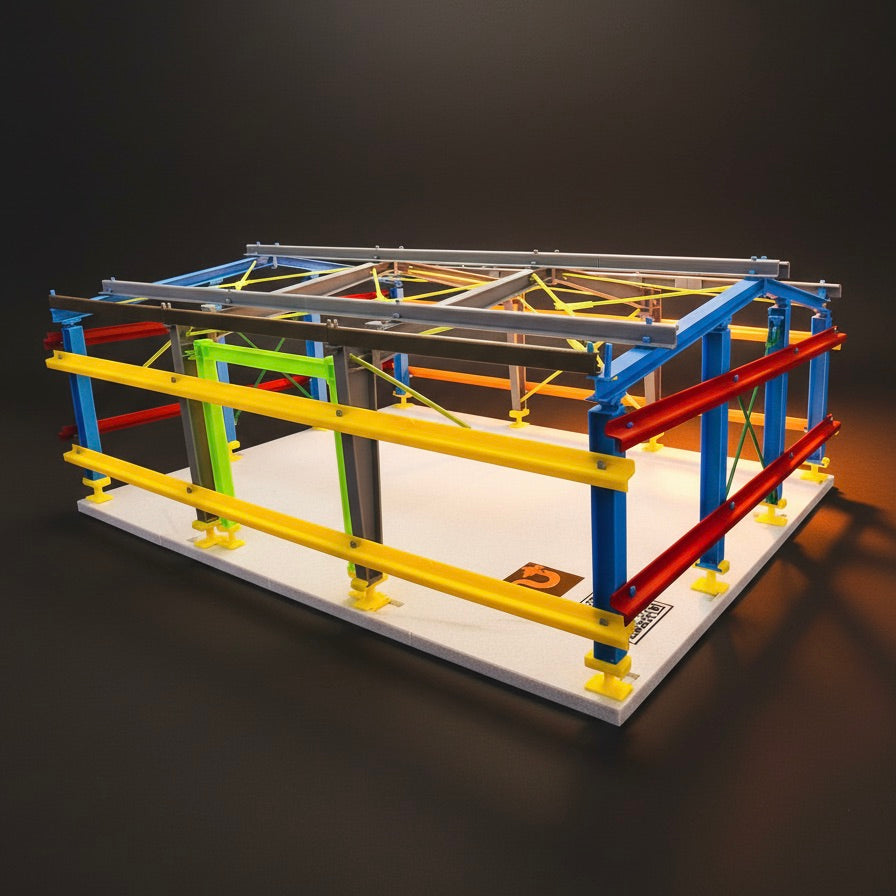

Your Training Model arrives completely disassembled and snaps together by hand.
Made for the room. Not the heat.
Made from PLA and TPU. Designed for indoor use and storage; keep away from excessive heat, including hot vehicles.
Find your assembly step.
Open a step for the key actions. Time links open that part of the same video on YouTube in a new tab.
Before you begin
The model snaps together by hand; no tools or supplies are required.
01Build the base and add the pin connections0:00
- Slide the matching male and female edges of the base tiles together. Assemble the rows, join the complete base, then turn it over.
- Match the labeled pin connections to the base grid lines: 2/3 at lines 2 and 3, 1/4 at lines 1 and 4, and the smaller D-labeled pieces at line D.
02Assemble the primary and endwall frames1:56
- Pair the frame members using their matching alphanumeric labels. The video demonstrates 2D with 2D, then the 2A and 3A locations.
- Fit the portal frame’s slotted connection into the matching notch shown in the video.
- Match the endwall column labels to their base locations. Use the close-up to see how the recessed side sits flush, then join the rafters and repeat at the other end.
03Add the endwall, roof and wall bracing4:38
- Remove the portal frame before installing the bracing. Match the bracing to the slots at the post-and-beam endwalls.
- Match each brace to its mating recess and seat it flush. Longer bracing pieces go in the roof; shorter pieces go in the walls.
04Fit the flush girts and eave struts6:54
- At the back side, align the flush-girt connection holes with their matching fittings and press them into position as shown.
- Use the close-up to identify the eave-strut profile, then fit the pieces along the eaves.
05Join the remaining secondary members8:48
- Join the male and female ends of the endwall members shown in yellow in the video, then repeat for the matching pieces.
- Match the different male and female connector ends for the remaining secondary members and front sidewall girts, following the demonstrated order.
06Fit the roof and wall secondary members10:07
- Align the two holes with the two fittings and press the members into place as shown.
- Follow the demonstration through the brown roof members, front sidewall girts and endwall girts.
07Finish with the portal frame11:30
- The video finishes by returning the portal frame to its base location alongside the X bracing and showing the assembled model.
Use the video close-ups for the small slots, recesses and connection orientation.
Keep the essentials close.
No tools or supplies required.
Included with your model
Parts are wrapped by type in corrugated brown paper. Keep those groups together as you unpack.
- Base
- Primary and secondary framing
- Bracing + a few spare bracing connectors
- Everything needed for hand assembly
- Packing slip
Make room for the assembled model
Length × width × height
31 × 23 × 12.5 in
78.7 × 58.4 × 31.8 cm
Approximately 6 lb (2.7 kg), model only.
Ships disassembled in a 12 × 12 × 8-inch box.
Need a hand?
Contact Justice with your assembly, care or order question.
justice@pyriteprinting.comOpen the contact pageMissing or arrival-damaged parts
For Training Model orders delivered within the United States or Canada, Pyrite replaces parts that arrive damaged or are missing, with no charge for the replacement parts or their shipping.
Replacement parts are not shipped to other countries.
Guidance for assembling and caring for the Pyrite Training Model. The model is a conceptual teaching aid, not a project-specific engineering or erection guide.
